High Power MLCC

ACC
ACU
AC3
ACZ

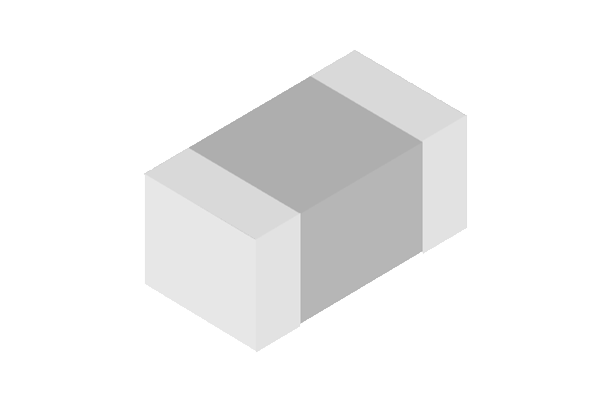

High Power MLCC (C0G)

E-mail: esd-emi@amotech.co.kr

Feature

High temp. & DC bias stability

Competitiveness

  • Low ESR at High Frequencies
  • No piezoelectric noise

Application

  • Automotive Powertrain & Industry Power Systems
Part No. Size Rated Voltage Dielectric Material Capacitance Data Sheet Sample
EIA (inch) JIS (mm)
ACC06X50N104□NLA 1206 3216 50V C0G 0.1uF
ACC06X2CN391□NLA 1210 3225 2kV C0G 390pF
ACC10X1BN104□NLA 1210 3225 100V C0G 0.1uF
ACC10K2BN473□NLA 1210 3225 200V C0G 0.047uF
ACC20H1CN602□NLA 2220 5750 1kV C0G 6nF
ACC24K5BN473□NLA 2824 7060 500V C0G 0.047uF
ACC40L5BN224□NLA 3640 90100 500V C0G 0.22uF

High Power MLCC (U2J)

E-mail: esd-emi@amotech.co.kr

Feature

Safety design handing HV impulse

Competitiveness

  • Meet class Y2/X1, X1 and X2 requirements
  • Approved for mains AC voltages up to 250VAC

Application

  • EV / HEV Powertrain & Home Appliance Power Systems
High Power MLCC (U2J)
Part No. Size Rated Voltage[V] Capacitance
@ 1KHz [nF]
Type Data Sheet Sample
EIA (inch) JIS (mm)
ACU06X2CF□□□□ALA 1206 3216 2 K 0.22 ~ 3.3
ACU06E2CN471KNLA 2 K 0.47
ACU06X3CF□□□□ALA 3 K 0.22 ~ 1.5
ACU10X2CF□□□□ALA 1210 3225 2 K 0.68 ~ 5.6
ACU10X3CF□□□□ALA 3 K 0.68 ~ 3.3
ACU12L2CF□□□□ATA 1812 4532 2 K 0.47 ~ 12.0
ACU12L3CF□□□□ATA 3 K 0.47 ~ 4.7
ACU20L3CF□□□□ATA 2220 5750 250 VAC 1.0 ~ 10.0 X1/Y2
ACU20L6BH502JNLA 603 5.0
ACU20K1CN103JNLA 1 K 10.0

High Power MLCC (X7T-Metal frame)

E-mail: esd-emi@amotech.co.kr

Feature

Excellent ripple current characteristics

Competitiveness

  • Superior DC bias characteristics and large capacitance
  • Self-developed pseudo-cubic para-electrics material

Application

  • Automotive & Industry power system
  • Metal frame available
High Power MLCC (X7T-Metal frame)
Part No. Size Rated Voltage[V] Capacitance
@ 1KHz [nF]
Type Data Sheet Sample
EIA (inch) JIS (mm)
AC306X□□N□□□□NLAS 1206 3216 250 – 0.06
AC306X□□N□□□□NLAS 1206 3216 630 – 0.15
AC310X□□N□□□□NLAS 1210 3225 250 – 0.15
AC310X□□N□□□□NLAS 1210 3225 630 – 0.047
AC312L□□N□□□□NTAS 1812 4532 250 – 0.3
AC312L□□N□□□□NTAS 1812 4532 630 – 0.068
AC320L□□N□□□□NTAS 2220 5750 250 – 1.0
AC320L□□N□□□□NTAS 2220 5750 630 – 0.22
AC320L□□N□□□□MTAS * 2220 5750 250 – 1.0 Metal
Frame [1S]

AC320L□□N□□□□MTAS * 2220 5750 630 – 0.22
AC320L□□N□□□□MTAD * 2220 5750 250 – 2.2 Metal
Frame [2S]

AC320L□□N□□□□MTAD * 2220 5750 630 – 0.56



High Power MLCC (PLZT-Metal frame)

E-mail: esd-emi@amotech.co.kr

Feature

High ripple current capability

Competitiveness

  • Increasing capacitance with DC bias up to operating voltage
  • Low ESL & ESR

Application

  • Automotive powertrain & Industry Power Systems
  • DC-Link
  • Metal frame available
High Power MLCC (PLZT-Metal frame)
Part No. Height Size Rated
Voltage [V]
Capacitance
@ 1KHz [nF]
Data Sheet Sample
EIA
 [inch]
JIS
[mm]
EIA
 [inch]
JIS
[mm]
Co Ceff Cnom
ACZ20F5BF224MMTAS 0.055 1.4 2220 5750 500 60 110 220
ACZ20F7BF903MMTAS 0.055 1.4 2220 5750 700 25 45 90
ACZ20F9BF553MMTAS 0.055 1.4 2220 5750 900 15 28 55
