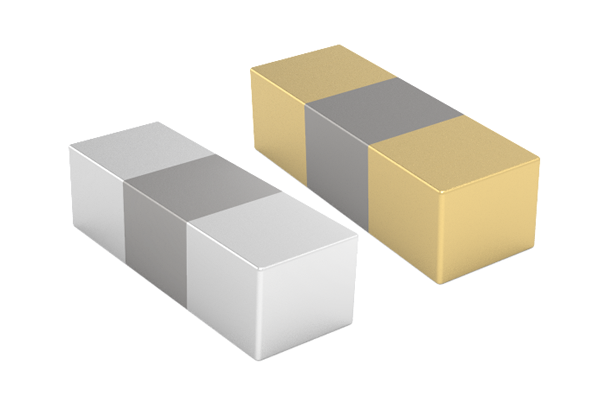

Broadband capacitor

Broadband capacitor

E-mail: esd-emi@amotech.co.kr

Product description (Function)

It has a DC block and broadband pass characteristics in mmWAVE application and optical communication equipment.

Competitiveness

  • Proprietary design
  • Low insertion loss characteristics
  • Broadband characteristics (> 40 GHz)
  • low loss dielectric material
  • RoHS compliant

Application

  • Optical Communication equipment and Modules(TOSA, ROSA)
  • MMIC for mmWAVE
Part No. Size Dielectric
Material
Rated Voltage Capacitance Capacitance
tolerance
Plating OP Frequency
EIA(inch) JIS (mM)
ABCUA06F0XX103MNDG 01005 0402 X5R 6.3 0.01uF M(20%) Ni-Sn 40 GHz
ABCUA06F0XX103MGDG 01005 0402 X5R 6.3 0.01uF M(20%) Au 40 GHz
ABCUA06F0XX473MNDG 01005 0402 X5R 6.3 0.047uF M(20%) Ni-Sn 40 GHz
ABCUA06F0XX473MGDG 01005 0402 X5R 6.3 0.047uF M(20%) Au 40 GHz
ABCUA04F0XX104MNDG 01005 0402 X5R 4 0.1uF M(20%) Ni-Sn 40 GHz
ABCUA04F0XX104MGDG 01005 0402 X5R 4 0.1uF M(20%) Au 40 GHz
ABCUA10201X103PNDG 0201 0603 X7S 10 0.01uF P(+100/-0%) Ni-Sn 40 GHz
ABCUA10201X103PGDG 0201 0603 X7S 10 0.01uF P(+100/-0%) Au 40 GHz
ABCUB10S01X104KNDG 0201 0603 X7R 10 0.1uF K(10%) Ni-Sn 56 GHz
ABCUB10S01X104KGDG 0201 0603 X7R 10 0.1uF K(10%) Au 56 GHz
ABCUA10201X104KNDG 0201 0603 X7S 10 0.1uF K(10%) Ni-Sn 40 GHz
ABCUA10201X104KGDG 0201 0603 X7S 10 0.1uF K(10%) Au 40 GHz
ABCUA16F01X104KNDG 0201 0603 X5R 16 0.1uF K(10%) Ni-Sn 40 GHz
ABCUA16F01X104KGDG 0201 0603 X5R 16 0.1uF K(10%) Au 40 GHz
ABCUA10202X104KNDG 0402 1005 X7S 10 0.1uF K(10%) Ni-Sn 40GHz
ABCUA10202X104KGDG 0402 1005 X7S 10 0.1uF K(10%) Au 40GHz
ABCUA16F02X104KNDG 0402 1005 X5R 16 0.1uF K(10%) Ni-Sn 40GHz
ABCUA16F02X104KGDG 0402 1005 X5R 16 0.1uF K(10%) Au 40GHz
