UWB Module

New Compact and Low Cost Standalone UWB Module with Antenna Integration

UWB Module

  • The UWB module is based on NXP’s SR150 or SR040 Ultra Wideband (UWB) transceiver IC.
  • The UWB SR150 Module integrates all RF circuitry, power management and clock circuitry in one module compliant to IEEE 802.15.4 HRP UWB PHY. It can be used for 2-way measurement with a measurement accuracy of 10cm, for angle of arrival measurement with an accuracy of +/-5 degree and for a TDOA measurement with an accuracy of 0.3ns. It can be also used for data transmission with a data rate of up to 7.8Mbits/s.
  • The UWB SR040 Module is a fully integrated single chip Impulse Radio Ultra-Wideband (IR-UWB) low energy transceiver IC compliant to IEEE 802.15.4/4z HRP UWB PHY.
  • It is designed for Ranging applications in an IOT environment. In can be used for 2-way ranging achieving an accuracy of ±10cm in non-line of sight.

Competitiveness

  • Dedicated antenna design and manufacturing service as well as standard UWB antenna solution for module application
  • Customer support for firmware optimization for UWB TWR or AoA
  • Customized support for the module with CPU, antenna, BLE and other functions
  • Technical support for certifications such as FCC, CE, RE-D

UWB Module Product

  • mkcho@amotech.co.kr
  • jihaejeong@amotech.co.kr
  • cindy@amotechglobal.com

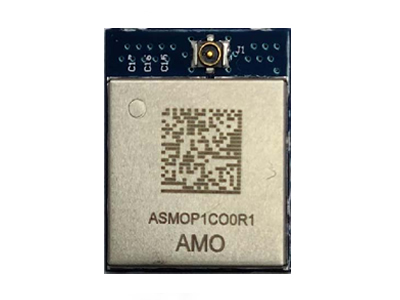

PRODUCT :  ASMOP1CO0R1

SPEC

  • Size : 13mm x 18mm x 2.0mm
  • UWB IC : SR040
  • Antenna : External antenna
  • Interface : SPI
Datasheet
  • mkcho@amotech.co.kr
  • jihaejeong@amotech.co.kr
  • cindy@amotechglobal.com

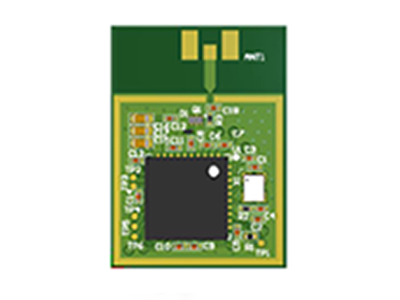

PRODUCT :  ASMOP1CO0A1

SPEC

  • Size : 13mm x 18mm x 2.3mm
  • UWB IC : SR040
  • Antenna : Internal antenna
  • Interface : SPI
Datasheet
  • mkcho@amotech.co.kr
  • jihaejeong@amotech.co.kr
  • cindy@amotechglobal.com

PRODUCT :  ASMOP1BO0N1

SPEC

  • Size : 13mm x 13mm x 2.1mm
  • UWB IC : SR150
  • Antenna : External antenna
  • Interface : SPI
Datasheet
